Hydraulic Fixed Boom Crane

Hydraulic Fixed Boom Crane

Hydraulic Fixed Boom Crane

Hydraulic Fixed Boom Crane

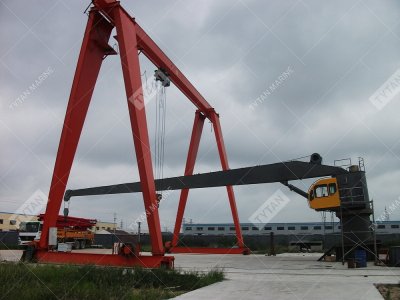

Marine Fixed Boom Crane consists of pedestal, boom, hoisting winch, hydraulic cylinder, slewing gear, hook, operation platform etc.

All motions are operated on the platform or operator cabin by the multi-way valve.

The combined activities are exercisable and the rated speed is reduced too.

Design condition heel 5 degree and trim 2 degree.

Slewing range 360 degree.

Crane equips with manual emergency release device and emergency stop device.

Hydraulic power drive.


  • Design standard be based on CCS, BV, ABS, NK, GL, DNV, RINA, RS, IRS
  • Simultaneous operation of two or more functions
  • Various control options
  • 360Âșcontinuous rotation with limits available
  • Heat Treated stainless steel
  • Continuous welding throughout
  • Pedestal interface to suit client requirements
  • Epoxy zinc rich primer marine coating
  • All kinematic pair with good lubrication
  • Factory assembled and factory acceptance tested

More Info

Tytan Marine is a custom manufacturer of Hydraulic Fixed Boom Crane. For more product details and price of Hydraulic Fixed Boom Crane for sale (and any others), please contact us at any time. No matter what do you need from Tytan Marine, we prefer to offer it in China.
