4 Point Mooring Winch normally be used for an engineering ship or working barge, two winches with four mooring drums, so it’s be named 4 point mooring winch. And the cables be connected with anchors to control the working range of the ship/barge from 4 directions. It can be designed with electric motor driven or hydraulic motor driven too. This kind of winch is very important during engineering ship working. And during the winch system working, two wire ropes be drawing while letting other two wire ropes pay out normally.

Configuration of 4 Point Mooring Winch:

Based on different requirement, this kind of mooring winch could be designed as “single drum + single warping head(optional)”, that means there are four sets of winches on board ship, or “double drums(without warping head)”, then there are only two sets winches instead. And Tytan Marine with experienced design team then will give you the best one.

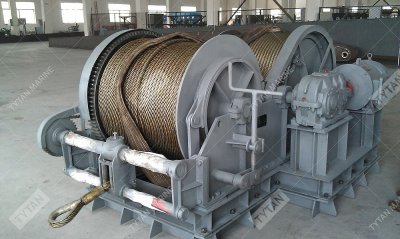

100kN 4 Point Mooring Winch

Rated pull load 100kN.

Two winches working at the same time.

Electric motor driven, and explosion-proof type.

Double drums.

With spooling devices.


  • Design standard be based on CCS, BV, ABS, NK, GL, DNV, RINA, RS, IRS
  • Electric, hydraulic or diesel power
  • Various control options
  • Drive failure braking protection system
  • Continuous welding throughout
  • Epoxy zinc rich primer marine coating
  • All kinematic pair with good lubrication
  • Optional warping head with bronze clutch
  • Factory assembled and acceptance tested

More Info

Tytan Marine is a custom manufacturer of 4 Point Mooring Winch. For more product details and price of 4 Point Mooring Winch for sale (and any others), please contact us at any time. No matter what do you need from Tytan Marine, we prefer to offer it in China.
